Chassis DTC, AL7075 Black – B74 (1)

69,95  incl. 19% VAT, plus Shipping.

Designed for Team Associated B74
2.00mm 7075-T6 Aluminium
Key Advantage = Performance
DRS qualified (more)
PS02298 / 4251038822980

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

Only 1 left in Stock
 delivered within 3 days.*

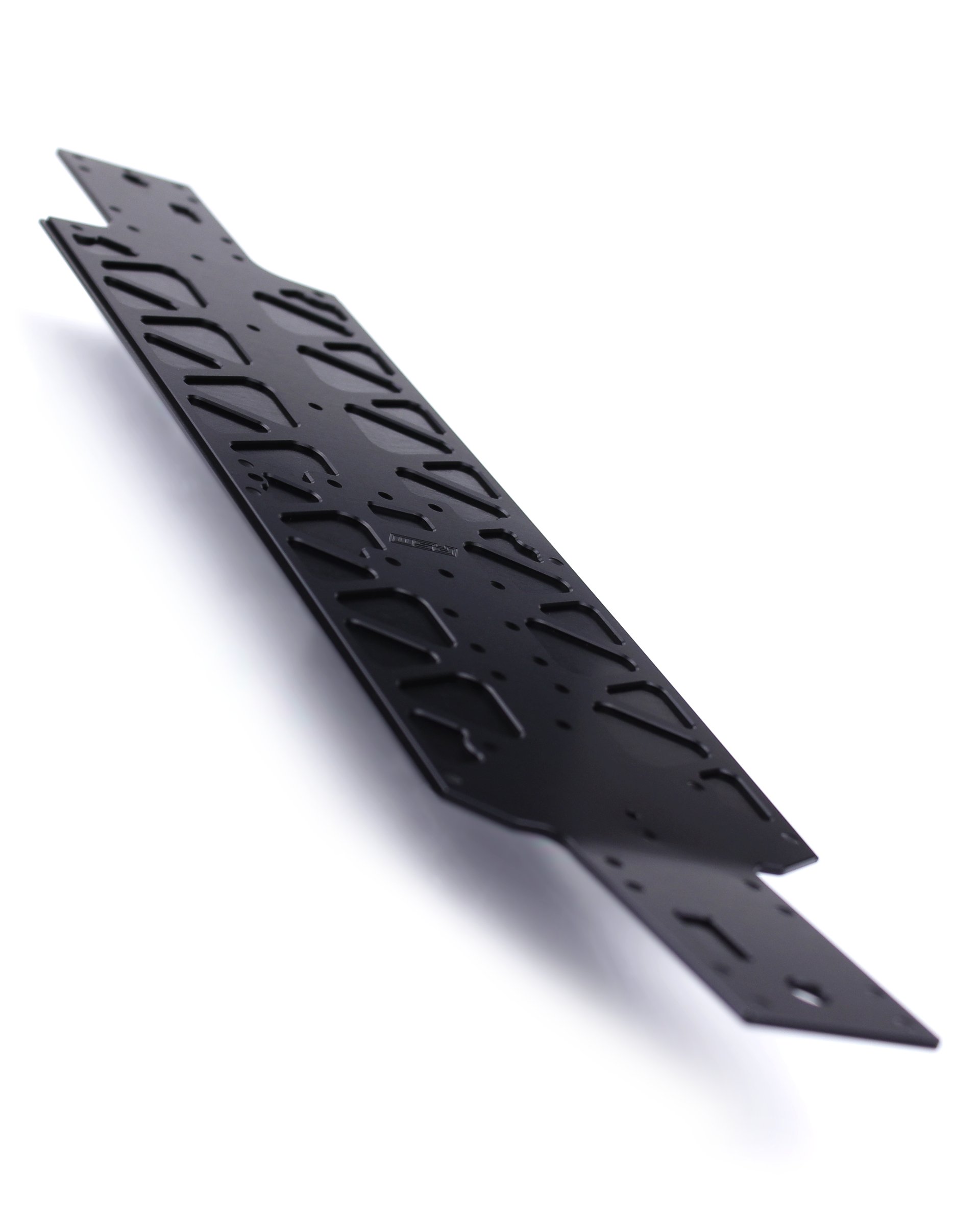

Developed to improve your B74’s performance, especially in medium to low grip track conditions, this DTC chassis features delta shaped pockets to provide soft torsion characteristics along with consistent performance. The soft flex allows your car to generate more mechanical grip, which is very helpful in low grip conditions and/or very tight tracks.

Our special coating provides a stealth black look along with super smooth surface finish. An additional PTFE coating for optimized surface gliding characteristics has been applied as well.

This chassis also features a unique LCG weight distribution system, which allows you to add up to 24 optional weight inlays (34.00g) to predefined locations with
out modifying the torsional characteristics of the chassis or adding up to its original thickness. Thanks to this you can fine balance your chassis pretty easily.

DTC = Delta Traction Characteristics (Medium -> Low surface traction)
HTC = High Traction Characteristics (Medium -> High surface traction)

Features

DTC

Delta Traction Characteristics

Stealth Black

with smooth PTFE coating

More Flex

for Indoor & Outdoor

Floating Tray

Compatible

Balance Weight Inlays

Compatible

Consistent

Performance

Optional

Balance Weight Inlay Set (Silver)

Balance Weight Inlay Set (Silver)

34.00g (Brass) - 24 Pcs. - #PS02295

Balance Weight Inlay Set (Golden)

Balance Weight Inlay Set (Golden)

34.00g (Brass) - 24 Pcs. - #PS02294

Floating Tray (Carbon)

Floating Tray (Carbon)

8.00g (Carbon Fiber) - #PS02296

Adding these optional weight inlays to predefined locations is easy and can greatly improve the balance of your chassis with
out modifying the torsional characteristics or adding up to its original thickness, a maximum of 34.00g can be installed through the LCG weight distribution system. To achieve these advantages, the weight is attached using strong double sided tape (included).

The floating tray will provide a flex free solution to mount your electronics on the chassis. This design allows the chassis to perform more consistent due to the balanced flex characteristics.

Technical Specifications

Designed for

Team Associated B74

Material

AL7075-T6 - 2.00mm

Weight

95.00g

Performance

Upgrade

Authentic Quality

Made in Germany by PSM

Assembly Time

approx. 15 Minutes

In the Box

1x Aluminium Chassis

1x Quick Instruction

*Weight inlays and Carbon Tray not included, assembled for display purpose only.
In case you are wondering what a specific shortcut means, you may check our Glossary to find proper explanation.
Please note that design, color, dimensions or weight may vary from the shown product due to manufacturing tolerances or product updates.

Weight95.00 g
Part Number

PS02298

GTIN Number

4251038822980

Compatibility

Team Associated – B74

Material

Aluminium – 7075-T6

Color

AC-Stealth Black

Manufacturer

PSM

Country of Origin

Germany
