Chassis HTC, AL7075 Black – T4’19 (1)

89,95  incl. 19% VAT, plus Shipping.

Designed for Xray T4'19
2.00mm 7075-T6 Aluminium
Key Advantage = Performance
DRS qualified (more)
PS02199 / 4251038821990

Out of Stock

Developed to improve your T4’s performance, especially in medium to high grip track conditions, this HTC chassis features special aligned pockets which create a stiffening rib pattern to provide less torsion characteristics along with consistent performance. Due to less flex your car will be more stable and generates more corner speed, which is very helpful in many high grip conditions and/or fast sweeping corners.

Our special coating provides a stealth black look along with super smooth surface finish. An additional PTFE coating for optimized surface gliding characteristics has been applied as well.

This chassis features a unique LCG weight distribution system, which allows you to add up to 16 optional weight inlays (2g each) to predefined locations with
out modifying the torsional characteristics of the chassis or adding up to its original thickness. Thanks to this you can fine balance your chassis pretty easily.

DTC = Delta Traction Characteristics (Medium -> Low surface traction)
HTC = High Traction Characteristics (Medium -> High surface traction)

Features

HTC

High Traction Characteristics

Stealth Black

with smooth PTFE coating

Less Flex

for Indoor & Outdoor

Balance Tray

Compatible

Balance Weight Inlays

Compatible

Consistent

Performance

Optional

Balance Weight Inlay Set (Golden) - #PS02231

Balance Weight Inlay Set (Golden) - #PS02231

22 x 2.00g (Brass)

Balance Weight Inlay Set (Silver) - #PS02232

Balance Weight Inlay Set (Silver) - #PS02232

22 x 2.00g (Brass)

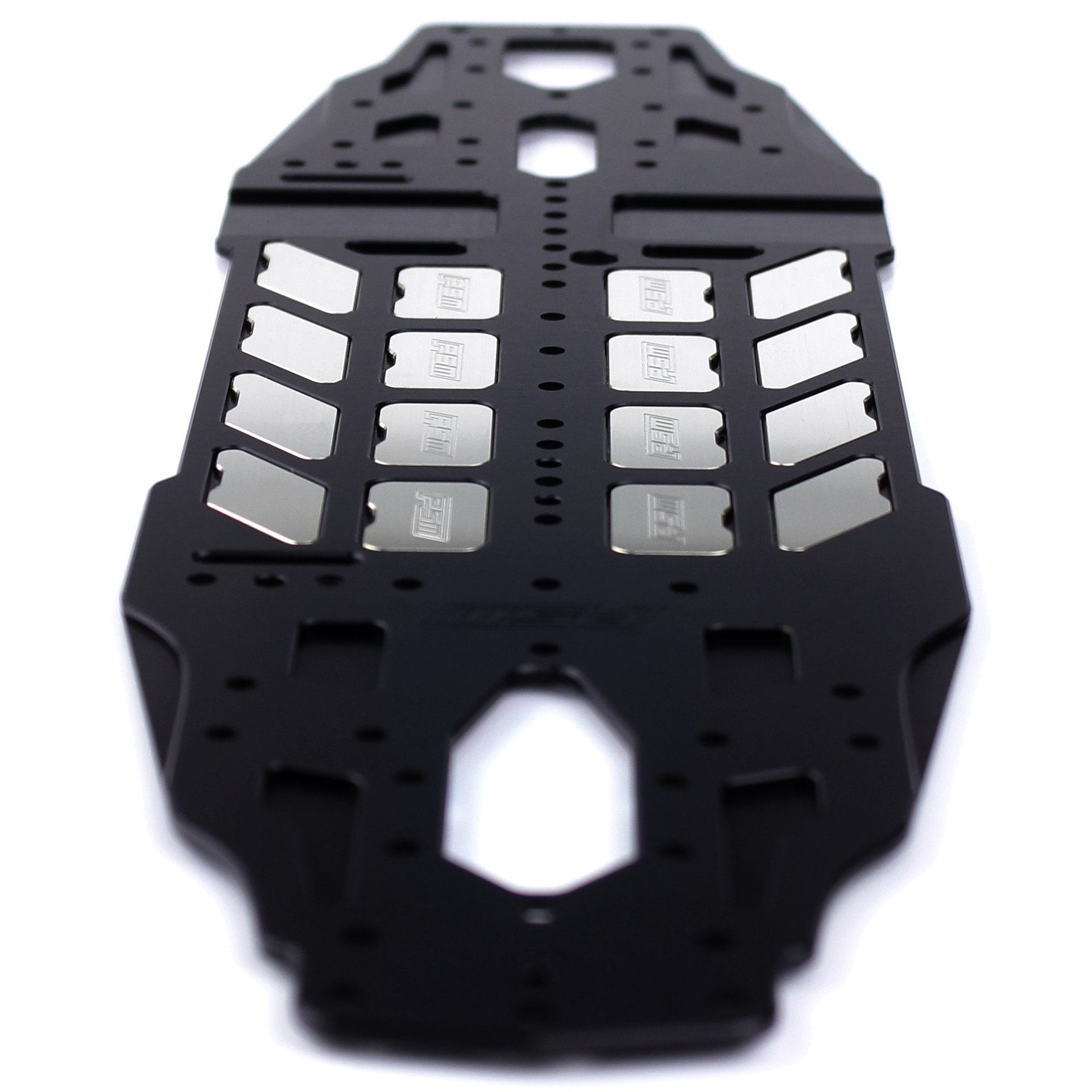

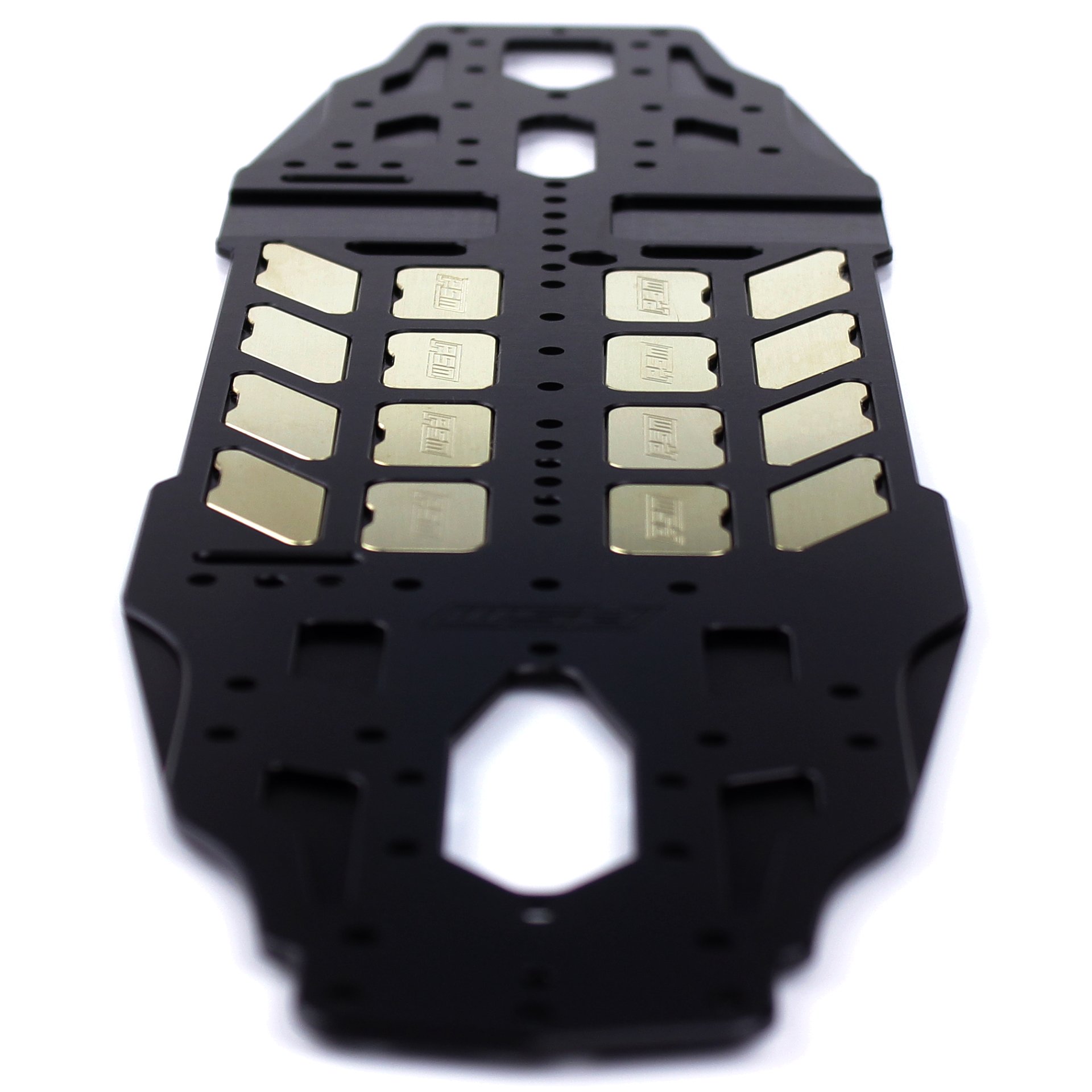

Adding these optional weight inlays to predefined locations is easy and can greatly improve the balance of your chassis with
out modifying the torsional characteristics or adding up to its original thickness, a maximum of 32.00g can be installed through the LCG weight distribution system. To achieve these advantages, the weight is attached using strong double sided tape (included).

Technical Specifications

Designed for

Xray T4'19

Material

AL7075-T6 - 2.00mm

Weight

94.00g

Performance

Upgrade

Authentic Quality

Made in Germany by PSM

Assembly Time

approx. 20 Minutes

In the Box

1x Aluminium Chassis

1x Quick Instruction

*Weight inlays not included, assembled for display purpose only.
In case you are wondering what a specific shortcut means, you may check our Glossary to find proper explanation.
Please note that design, color, dimensions or weight may vary from the shown product due to manufacturing tolerances or product updates.

Weight94.0 g
Part Number

PS02199

GTIN Number

4251038821990

Compatibility

Xray – T4'19

Material

Aluminium – 7075-T6

Color

AC-Stealth Black

Manufacturer

PSM

Country of Origin

Germany
