Chassis Conversion Kit, Carbon 2.25 – TA07 (Set)

99,95  incl. 19% VAT, plus Shipping.

Designed for TA07R
2.25mm Carbon Composite
Key Advantage = Performance
DRS qualified (more)
PS02082 / 4251038820825

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

Out of Stock

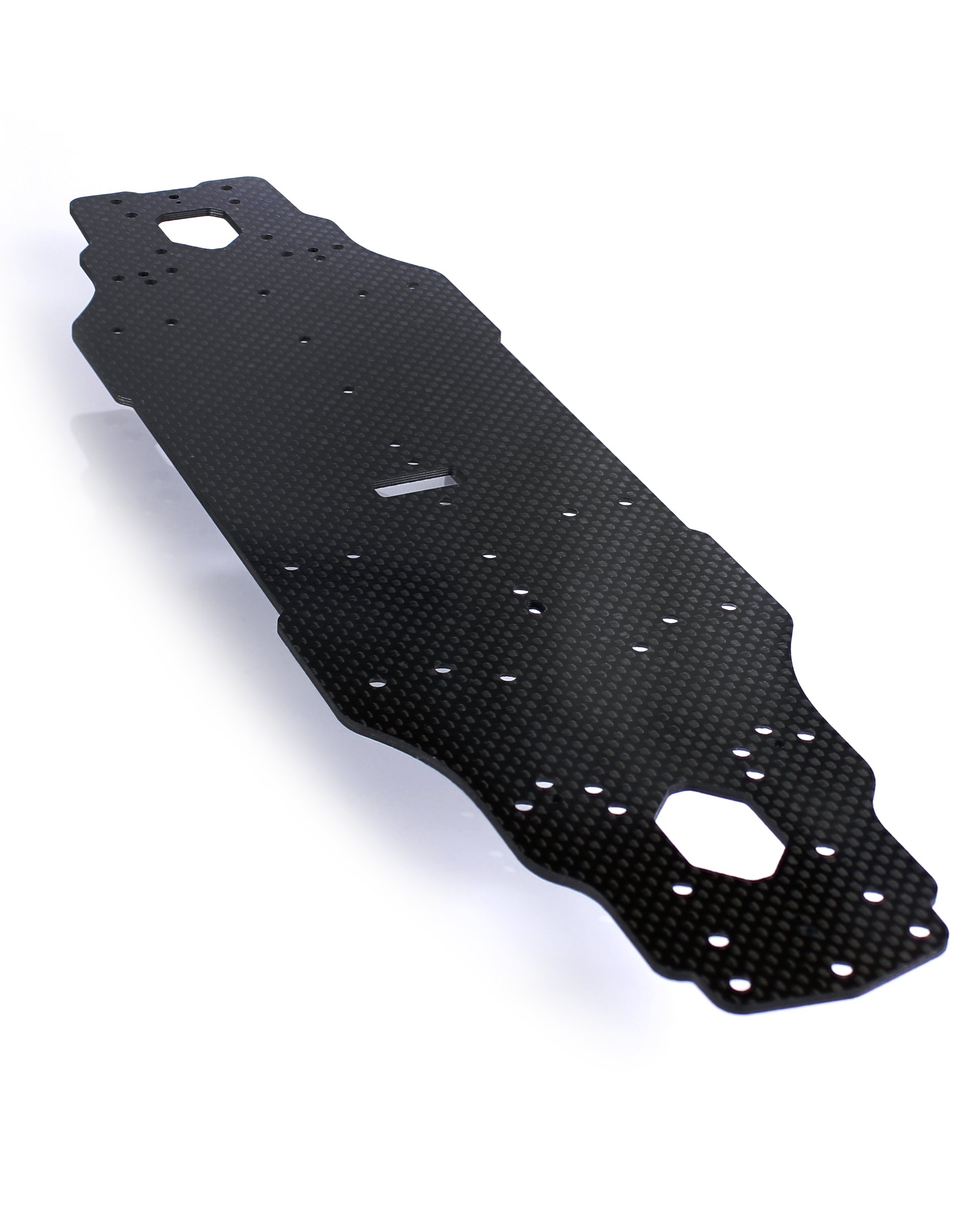

This carbon fiber chassis conversion kit was designed to improve the TA07’s overall performance, adding a more precise handling and stiffer torsional flex for faster cornering. It is a complete new performance experience compared to the kit included plastic chassis design. Designed to work great on low to medium grip tracks, this conversion can be upgraded with our aluminium chassis (available 2019) for use on high grip tracks.

Its recommended to use with the TA07 R version, but will work with the Pro version as well.

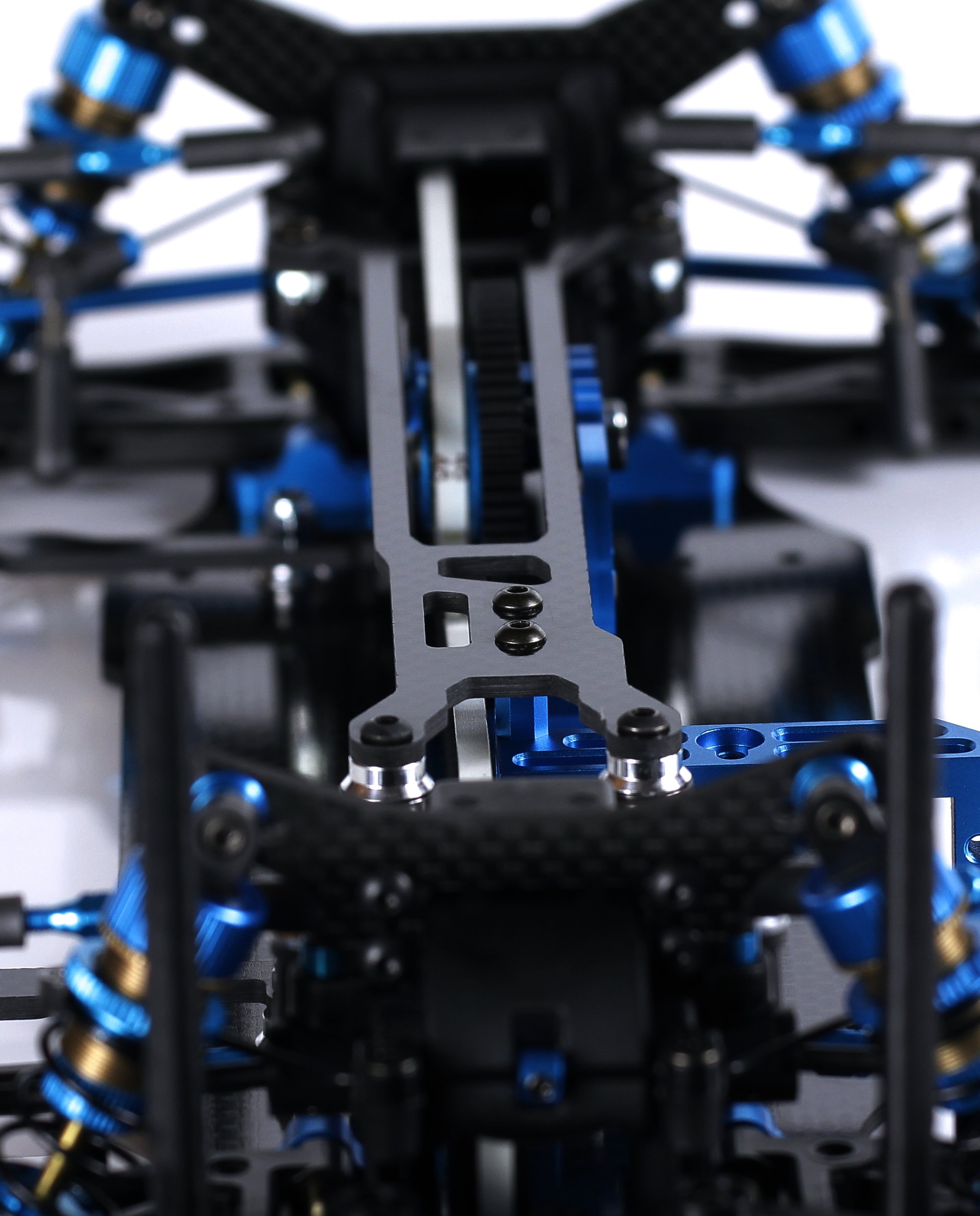

Low profile universal Upper Deck

Low profile universal Upper Deck

Carbon Fiber 2.25mm

Designed to develop linear torsional flex, even due to the slightly outer-middle placement, this upper deck works great with all three motor position layouts.

Front bridge Top Braces

Front bridge Top Braces

Carbon Fiber 2.00mm

These braces are supporting the steering posts while adding stiffness to the vehicles front end.

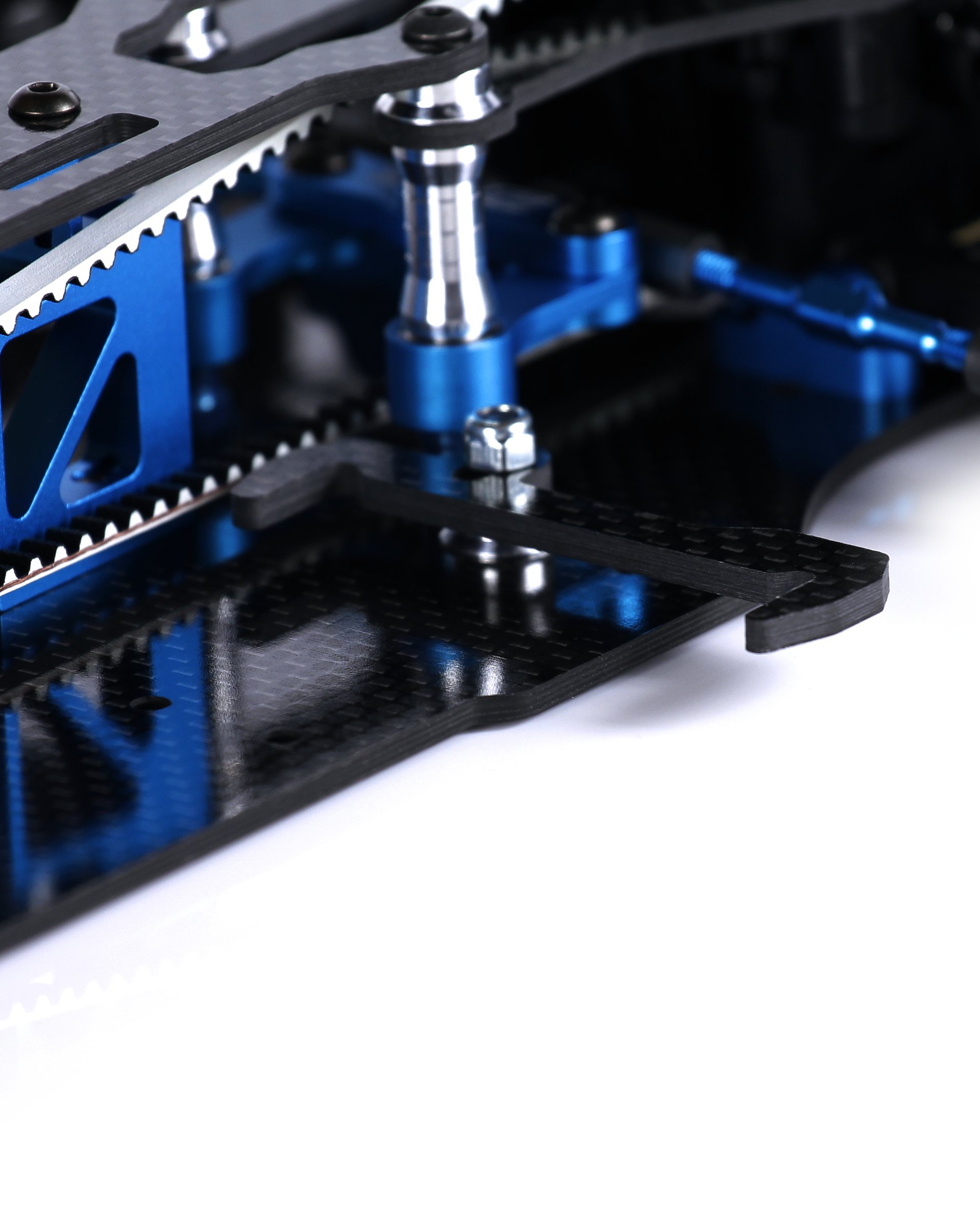

Adjustable Battery Braces

Adjustable Battery Braces

Carbon Fiber 2.50mm

They allow precise battery positioning with standard, lcg or shorty batteries. Fixed in place with tape, the battery will float a few tenths millimeters above the chassis and will not manipulate the flex performance.

Technical Specifications

Designed for

Tamiya TA07R


Carbon Composite - 2.25mm


100.00g (Set)

Performance Upgrade

TRF looks

Authentic Quality

Superior quality components

Assembly Time

approx. 30 Minutes

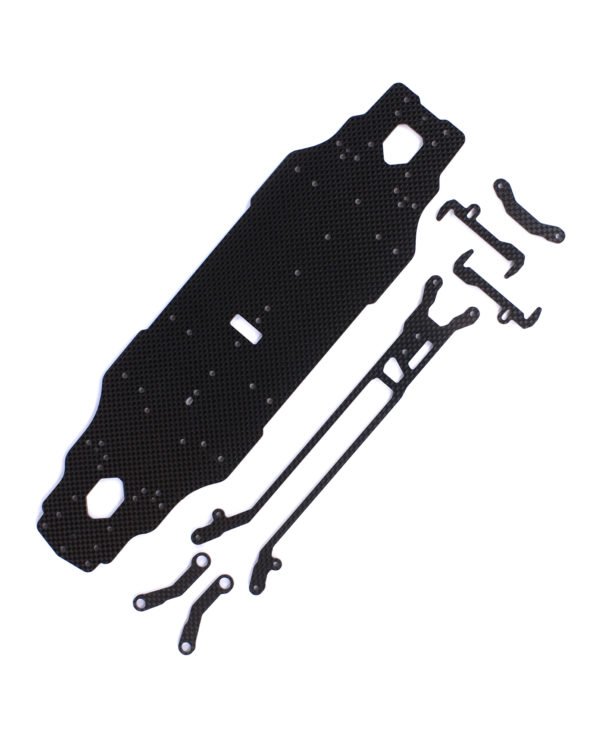

In the Box

1x Carbon Chassis

1x Carbon Upper Deck

1x Screw & Washers Kit

2x Aluminium Steering Posts

1x Carbon Rear Top Brace

2x Carbon Front Top Brace

2x Carbon Battery Brace

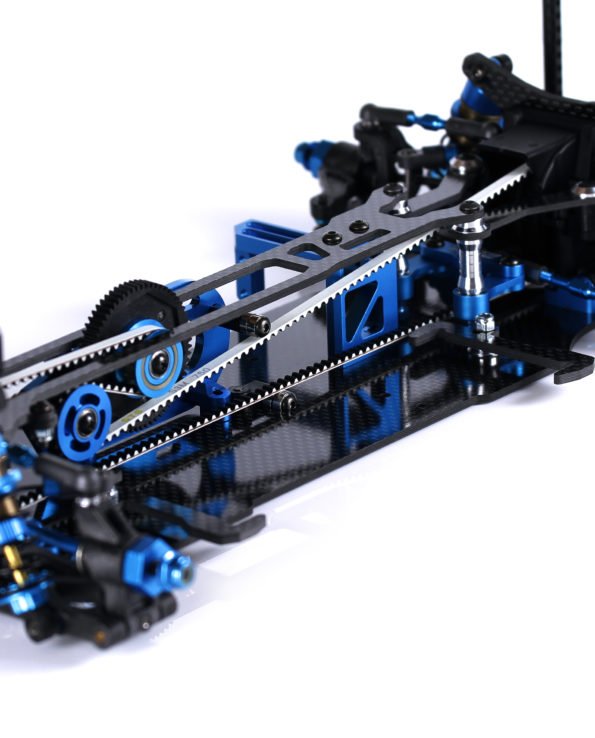

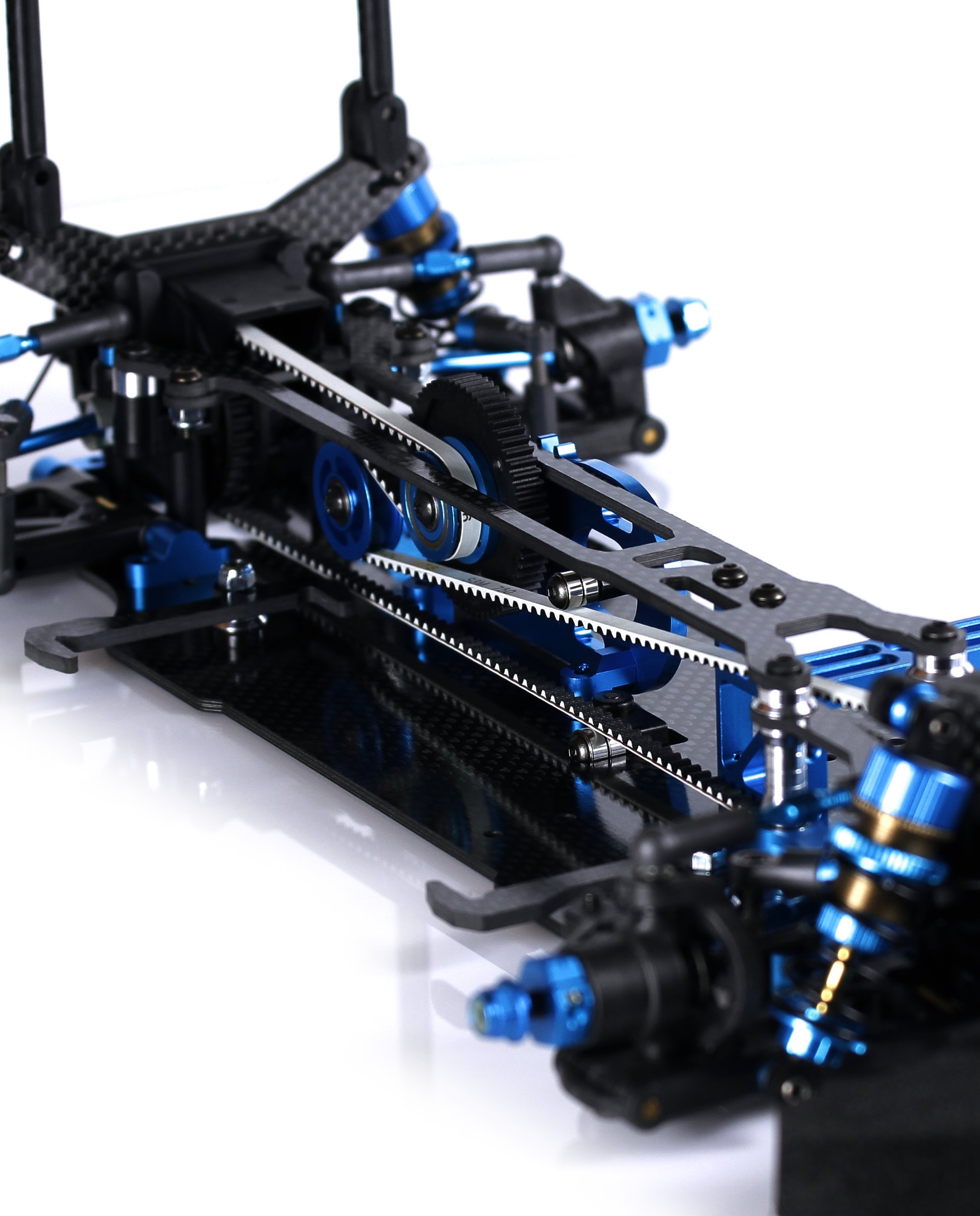

*TA07R model not included, built for display purpose only. Pictures show prototype. Parts and colors may be different in production.
In case you are wondering what a specific shortcut means, you may check our Glossary to find proper explanation.
Please note that design, color, dimensions or weight may vary from the shown product due to manufacturing tolerances or product updates.

Weight100.0 g
Part Number


GTIN Number



Tamiya – TA07R | PRO


Carbon Composite


Carbon Weave – Black



Country of Origin


  1. Rated 5 out of 5

    timou69 (verified owner)

    Marre du plastique de Tamiya, ce kit est fait pour vous ! Super qualité et super carbone, rend le chassis bien plus plaisant que celui d’origine !
